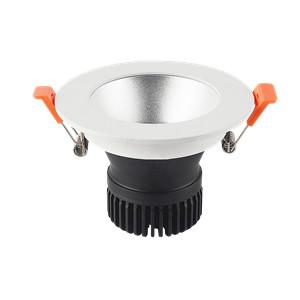

LED Downlight DTA Series custom LED Downlight for Hotels Black LED Downlight manufacturer
Model: JST-DTA
Wattage: 10W-60W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/36°/60°
Diameter: 90mm-260mm
Cutout: 80mm-230mm
dimmable LED Downlight Description
The glareless led downlight we design to use orginal high qualtiy CITIZEN/CREE led chip.
Design with two reflector cups, mirror-finish/sand-blast reflector.
Pure aluminum heatsink make power min10W max60W
LED Downlight Advantages
1. High Ra>90, high efficiency,high luminosisy, SDCM<3, make surroundings of high-quality illumination
2. Glare-fee design, perfect light spot with precise cast.
3. Easy to installation.
4. Aluminum alloy housing, ensure high-end and gorgeous product with beautiful design
Specification
|
Model
|
Power
|
CRI
|
CCT
|
PF
|
Current
|
Input Voltage
|
Beam Angle
|
Dimension
|
Cutout
|
|
JST-DTA
|
10W
|
>80/90
|
2700K-5000K
|
>0.65
|
0.25A
|
AC220-240V
|
15°/24°/36°/60°
|
D95*H75mm
|
80mm
|
|
JST-DTA
|
15W
|
>80/90
|
2700K-5000K
|
>0.90
|
0.35A
|
AC220-240V
|
15°/24°/36°/60°
|
D105*H80mm
|
90mm
|
|
JST-DTA
|
20W
|
>80/90
|
2700K-5000K
|
>0.90
|
0.50A
|
AC220-240V
|
15°/24°/36°/60°
|
D140*H130mm
|
120mm
|
|
JST-DTA
|
30W
|
>80/90
|
2700K-5000K
|
>0.90
|
0.75A
|
AC220-240V
|
15°/24°/36°/60°
|
D180*H155mm
|
150mm
|
|
JST-DTA
|
40W
|
>80/90
|
2700K-5000K
|
>0.90
|
1.00A
|
AC220-240V
|
15°/24°/36°/60°
|
D230*H193mm
|
200mm
|
|
JST-DTA
|
50W
|
>80/90
|
2700K-5000K
|
>0.90
|
1.25A
|
AC220-240V
|
15°/24°/36°/60°
|
D260*H210mm
|
230mm
|
|
JST-DTA
|
60W
|
>80/90
|
2700K-5000K
|
>0.90
|
1.50A
|
AC220-240V
|
15°/24°/36°/60°
|
D260*H225mm
|
230mm
|
Application
Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.
Our products such as customized LED downlight, LED track light and LED grille downlight have various certificates, such as CE, ROHS, SAA, CB, TUV ect.
